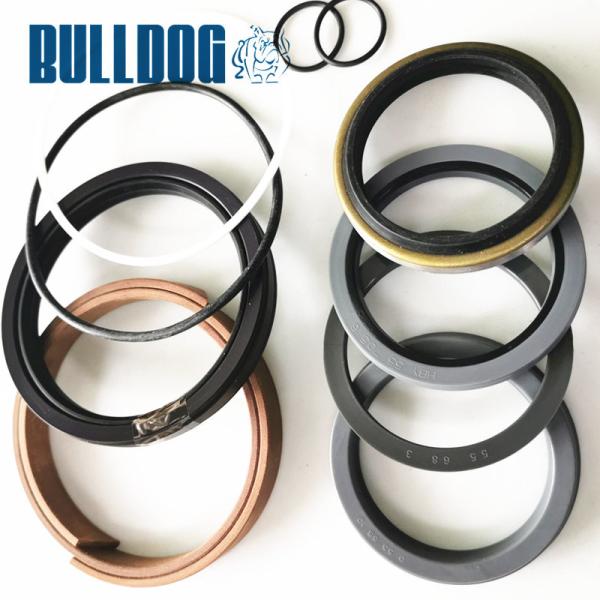

707-99-26530 KOMATSU Wb97 WB93S WB142 WB156 Backhoe Loader Hydraulic Bukcet Cylinder Seal Kit
Model:KOMATSU Wb97 WB93S backhoe loader Bucket CYLINDER SERVICE Seal Kits
Part number:707-99-26530
Cylinder number:707-00-0Y901,707-00-0Y902
Rod:55MM
Piston:90MM
For:KOMATSU Wb97 WB93S WB142 WB156 backhoe loader hydraulic cylinder seal kit
Material:PU+NBR+PTFE
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram, Paypal, Alipay
Delivery method:DHL,FedEx,UPS,etc.
Supply Ability:50
MOQ:1set
Parts list
| NO. | Part number | Product name | QTY |
| | 707-00-0Y902 | RISER CYLINDER ASSEMBLY | 2 |
| 1 | 707-76-45330 | BUSHING | 1 |
| 2 | 721-58-55480 | PISTON ROD | 1 |
| 3 | 707-29-90802 | CYLINDER HEAD | 1 |
| 4 | 707-52-90300 | PACKING, ROD | 1 |
| 5 | 707-36-90570 | PISTON | 1 |
| 6 | 707-67-36010 | NUT | 1 |
| 7 | 721-11-90682 | CYLINDER | 1 |
| 8 | 07179-12069 | RING, BACKUP | 1 |
| 9 | 707-76-45660 | BUSHING | 1 |
| | 707-99-26530 | KIT, GASKET | 1 |
| 10 | 07145-00045 | SEAL, DUST | 2 |
| 11 | 02896-11018 | O-RING | 2 |
| 12 | 707-56-55510 | SEAL, DUST | 1 |
| 13 | 07000-12090 | O-RING | 1 |
| 14 | 707-51-55030 | PACKING | 1 |
| 15 | 707-51-55640 | RING | 1 |
| 16 | 07146-02086 | RING, BACK-UP | 1 |
| 17 | 07000-12085 | O-RING | 1 |
| 18 | 07156-00912 | RING, WEAR | 2 |
| 19 | 707-44-90180 | RING, PISTON | 1 |
| 20 | 21D-09-89140 | FITTING, GREASE | 2 |

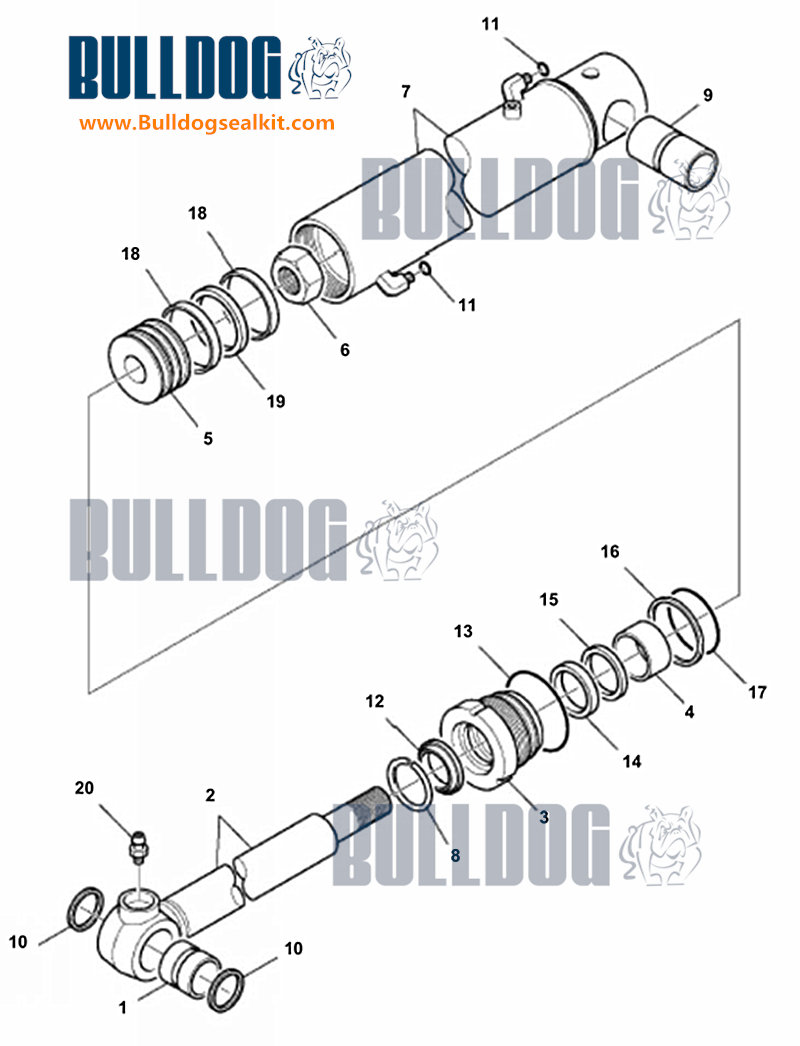

Parts exploded view
More service models
| D65E-12 |
| LIFT | 14X-63-01063 | 65 mm | 95 mm | | KOM-707-98-28600 |
| 14X-63-01063 | 65 mm | | | KOM-707-52-10660 |
| LIFT (TRIMMING) | 14X-63-07011 | 65 mm | 95 mm | | KOM-707-98-28600 |
| 14X-63-07011 | 65 mm | | | KOM-707-52-10660 |
| 14X-63-07012 | 65 mm | 95 mm | | KOM-707-98-28600 |
| 14X-63-07012 | 65 mm | | | KOM-707-52-10660 |
| RIPPER | 14X-63-01052 | 70 mm | 140 mm | KOM-707-98-52130 |
| 14X-63-01052 | 70 mm | | | KOM-707-52-10700 |
| TILT | 14Y-63-01032 | 70 mm | 140 mm | KOM-707-98-52140 |
| 14Y-63-01033 | 70 mm | 140 mm | KOM-707-98-52140 |
| 707-01-0C300 | 70 mm | 140 mm | KOM-707-98-52210 |
| 707-01-0C301 | 70 mm | 140 mm | KOM-707-99-52160 |
| TRIMMING LH | 14X-63-07030 | 55 mm | 120 mm | KOM-707-98-40020 |
| 14X-63-07030 | 55 mm | | | KOM-07177-05530 |
| TRIMMING RH | 14X-63-07040 | 55 mm | 120 mm | KOM-707-98-40020 |
| 14X-63-07040 | 55 mm | | | KOM-07177-05530 |
